Kawasaki Engines FS691V

Available

SKU: FS691V Category:

Description

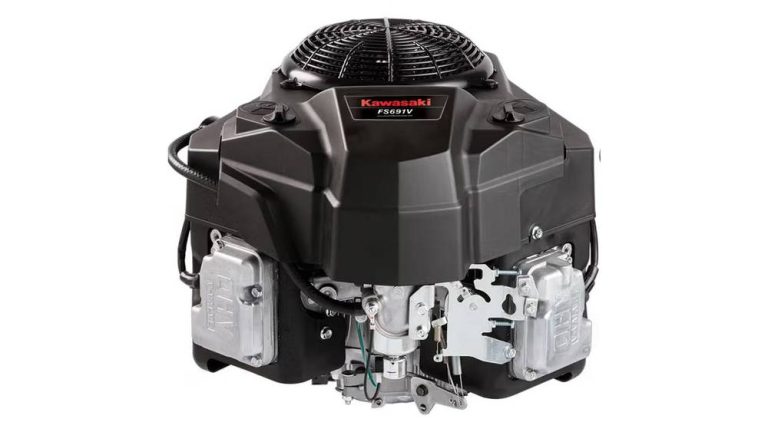

Kawasaki Engines FS691V

Designed for tough work in tight spaces, the 90° V-twin 4-cycle Kawasaki FS691V engine can help turn your zero-turn mower or lawn tractor into an impressive force of landscaping precision. Featuring a rotating grass screen and dual-element reinforced air filter, pressurized lubrication system, and cast-iron cylinder liners, this engine helps provide peak productivity.

Features
  • Overhead V-valve
  • Integrated clean out ports
  • 90° V-twin
  • Pressurized lubrication system
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor with fuel shut-off solenoid
  • Rotating metal grass chopper screen
  • Dual element air filtration system with reinforced primary filter
  • Cast-iron cylinder liners
Specificiations
  • Displacement: 726 cc (44.3 cu. in.)
  • Number of Cylinders: 2
  • Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm)
  • Compression Ratio: 8.2:1
  • Oil Capacity w/filter: 2.1 U.S. qt. (2.0 L)
  • Maximum Power: 23.0 HP (17.2 kW) at 3,600 RPM
  • Maximum Torque: 39.6 ft. lb. (53.6 N·m) at 2,200 RPM
  • Dry Weight: 90.4 lb. (41.0 kg)
Stock Number:FS691V
Make

Series

Model

Cylinders

2

Displacement

44.3 cu. in. (726 cc)

Torque

39.6 ft-lb. (53.6 N·m) at 2,200 RPM
