Description

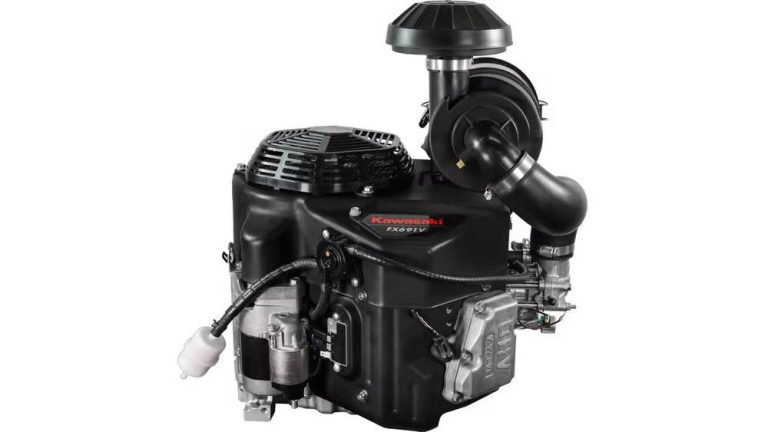

Kawasaki Engines FX691V
The forced-air-cooled V-twin Kawasaki FX691V engine features an internally vented carburetor with fuel shut-off solenoid, heavy-duty canister air filter, a metal engine cover with integrated clean-out ports, and more, for the kind of performance you can count on day in and day out. Take on the toughest jobs with the kind of confidence only meticulously crafted Kawasaki quality can give you.
Features
- Overhead v-valve
- 90° V-twin
- Pressurized lubrication system
- Electronic spark ignition
- Automatic compression release
- Rotating metal grass chopper screen
- Multi-Stage canister air filter
- Cast-iron cylinder liners
- Metal engine cover with integrated clean out ports
- Heavy duty shift-type starter
Specifications
- Displacement: 726 cc (44.3 cu. in.)
- Number of Cylinders: 2
- Bore x Stroke: 3.1 x 3.0 in. (78 x 76mm)
- Compression Ratio: 8.2:1
- Oil capacity w/filter: 2.2 U.S. qt. (2.1 L)
- Maximum Power: 22.0 hp (16.4 kW) at 3,600 rpm
- Maximum Torque: 39.3 ft-lb. (53.2 N·m) at 2,200 rpm
- Dry Weight: 101.4 lb. (46.0 kg)
| Stock Number: | FX691V |
| Make | |
|---|---|
| Series | |
| Model | |
| Cylinders | 2 |
| Displacement | 44.3 cu. in. (726 cc) |
| Torque | 39.3 ft-lb. (53.2 N·m) at 2,200 RPM |
| Horsepower | |
| Main Category |
