Description

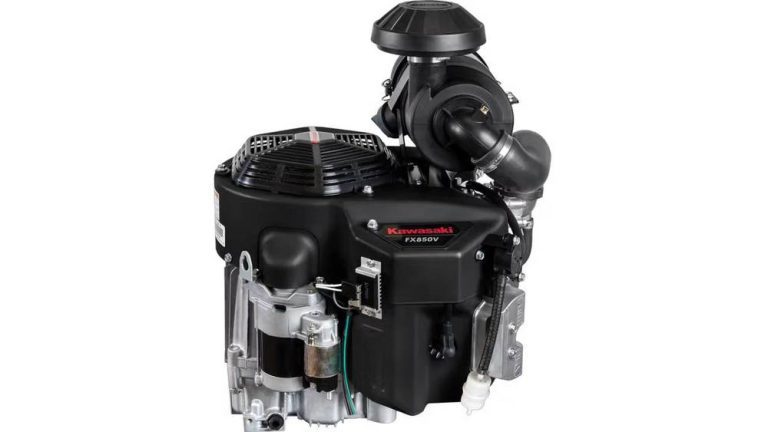

Kawasaki Engines FX850V
Power and precision team up to tackle the toughest jobs in the V-twin 4-cycle Kawasaki FX850V engine. With serious torque on tap, this engine features a heavy-duty shift-type starter and twin-barrel, internally vented carburetor with fuel shut-off solenoid. Plus, cast-iron cylinder liners and a metal engine cover with integrated clean-out ports contribute to trusted durability and reliable longevity.
Features
- Overhead v-valve
- 90° V-twin
- Pressurized lubrication system
- Electronic spark ignition
- Automatic compression release
- High efficiency oil cooler
- Rotating metal grass chopper screen
- Multi-Stage canister air filter
- Cast-iron cylinder liners
- Metal engine cover with integrated clean out ports
- Heavy duty shift-type starter
Specifications
- Displacement: 852 cc (52.0 cu. in.)
- Number of Cylinders: 2
- Bore x Stroke: 3.33 x 2.99 in. (84.5 x 76mm)
- Compression Ratio: 8.2:1
- Oil capacity w/filter: 2.4 U.S. qt. (2.3 L)
- Maximum Power: 27.0 hp (20.1 kW) at 3,600 rpm
- Maximum Torque: 45.6 ft-lb. (61.8 N·m) at 2,400 rpm
- Dry Weight: 124.0 lb. (56.4 kg)
| Stock Number: | FX850V |
| Make | |
|---|---|
| Series | |
| Model | |
| Cylinders | 2 |
| Displacement | 52.0 cu. in. (852 cc) |
| Torque | 45.6 ft-lb. (61.8 N·m) at 2,400 RPM |
| Horsepower | |
| Main Category |
