Description

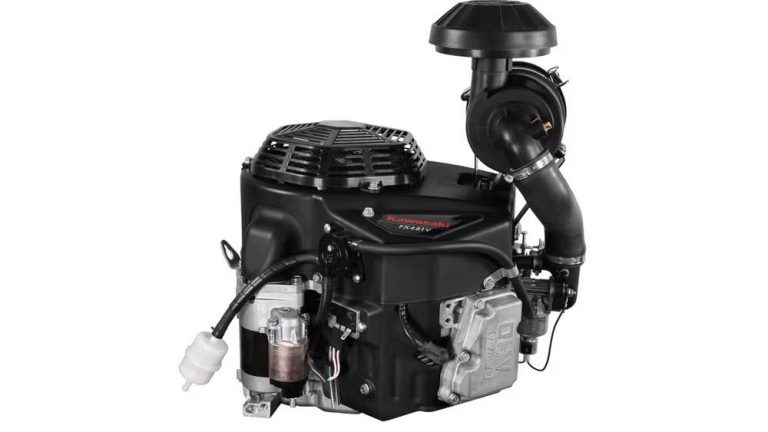

Kawasaki Engines FX481V
Designed to embody dependability day after day, the trusted V-twin 4-cycle Kawasaki FX481V engine features a metal engine cover with integrated clean-out ports, cast-iron cylinders, a heavy-duty shift-type starter, and more, contributing to sturdy, steady performance. When trust matters most, this engine can step up in a big way.
Features
- Overhead v-valve
- 90° V-twin
- Pressurized lubrication system
- Electronic spark ignition
- Automatic compression release
- Internally vented carburetor
- Rotating grass chopper screen
- Multi-Stage canister air filter
- Cast-iron cylinder liners
- Metal engine cover with integrated clean out ports
- Heavy duty shift-type starter
Specifications
- Displacement: 603 cc (36.8 cu. in.)
- Number of Cylinders: 2
- Bore x Stroke: 2.9 x 2.8 in. (73 x 72mm)
- Compression Ratio: 8.1:1
- Oil capacity w/filter: 1.8 U.S. qt. (1.7 L)
- Maximum Power: 15.5 hp (11.6 kW) at 3,600 rpm
- Maximum Torque: 31.7 ft-lb. (42.9 N·m) at 1,800 rpm
- Dry Weight: 89.7 lb. (40.7 kg)
| Stock Number: | FX481V |
| Make | |
|---|---|
| Series | |
| Model | |
| Cylinders | 2 |
| Displacement | 36.8 cu. in. (603 cc) |
| Torque | 31.7 ft-lb. (42.9 N·m) at 1,800 RPM |
| Horsepower | |
| Main Category |
